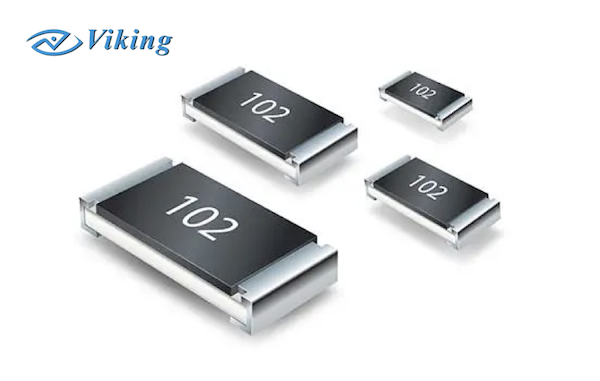

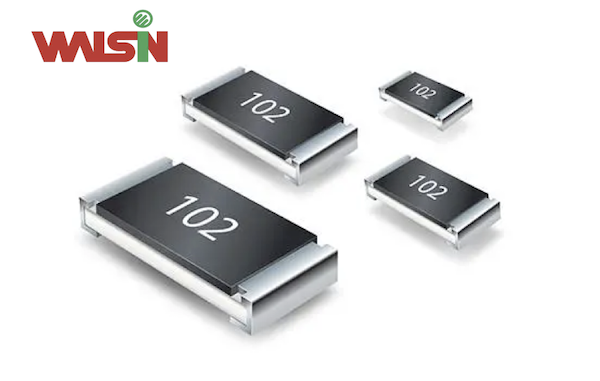

High Precision Thick Film chip resistor TC50 0201 - 1206, 10 - 1Mohm, 0.5%, 0.1%, TC50 Metal Plate Low Ohm Current Sense Chip-Resistor 0603 - 2512, 1 - 100mohm, 5%, 1%, TC50, TC100 Metal Plate Low Ohm Current Sense Chip-Resistor 0603 - 2512, 1 - 100mohm, 5%, 1%, TC50, TC100 Metal Plate Low Ohm Current Sense Chip-Resistor (Automotive) 0805 - 2512, 1 - 100mohm, 5%, 1%, TC50, TC100, AECQ200 compliant Metal Plate Power Low Ohm Current Sense Chip-Resistor (Automotive) 0805 - 2512, 1 - 100mohm, 5%, 1%, TC50, TC100, AECQ200 compliant Thick Film Chip Resistor Array 0402*4, Convex Type (Automotive) 8P4R, 0402*4, 1/16W 10-1Mohm, 5%, 1%, AECQ200 Compliant Thick Film Chip Resistor Array 0603*4, Convex Type (Automotive) 8P4R, 0603*4, 1/10W, 10-1Mohm, 5%, 1%, AECQ200 Compliant Thick Film General Purpose Anti-Sulfuration Chip-Resistor (Automotive) 0201 - 2512, 1 - 10Mohm, 5%, 1%, ASTM B-809 60C 480hrs, AECQ200 compliant Thick Film General Purpose Chip Resistor (Automotive) 0201 - 2512, 1 - 10Mohm, 5%, 1%, AECQ200 Compliant Thick Film High Power Chip Resistor (Anti-Sulfuration) 0402 - 2512, 1 - 10Mohm, 5%, 1%, ASTM B-809 60\C 480hrs, AECQ200 compliant Thick Film High Voltage Chip Resistor (Automotive) 0603 - 2512, 47 - 51Mohm, 200V - 800V, 5%, 1%, AECQ200 compliant Thick Film Low Ohm Current Sense Chip-Resistor (Automotive) 0603 - 2512, 0.01 - 0.976ohm, 5%, 1%, TC200 - 1500, AECQ200 compliant Thick Film Power Low ohm Current Sense Chip Resistor (Automotive) 0402 - 2512, 0.01 - 0.976ohm, 5%, 1%, TC100 - 300, AECQ200 compliant Thick Film Triple Power Surge Chip Resistor (Automotive) 0603 - 1206, 1 - 1Mohm, 5%, 1%, ASTM B-809 50\C 1000hrs, AECQ200 comliant Thick Film Wide Terminal Power Chip Resistor (Anti-Sulfuration) 0612 - 1225, 1 - 1Mohm, 5%, 1%, TC100, ASTM B-809 60\C 1000hrs, AECQ200 compliant Thick Flim Power Surge Chip Resistor (Automotive) 0603 - 0805, 1 - 1Mohm, 0.5%, 1%, ASTM B-809 60\C 1000hrs, AECQ200 comliant

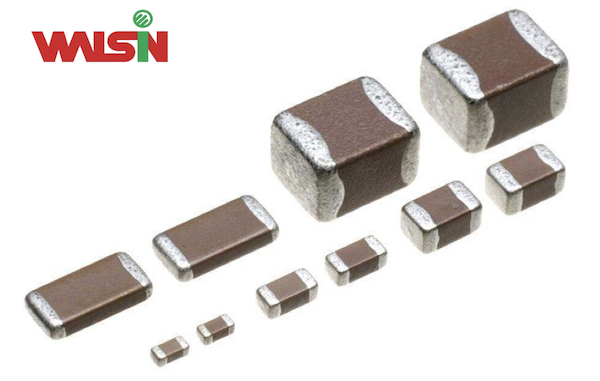

Automotive Caps Qualified to AEC-Q200 (MT series) Automotive Caps Without AEC-Q200 Certification_(MG series) Big sizes Caps 1825 2220 2225 AEC-Q200 0201 to 1210 NPO, X7R 0.1pF~2.2uF 10V~1000V High reliability/Automotive Capacitors Series 0201 to 1812 Sizes NPO, X5R, X7R 0.1pF~47uF 6.3V~1000V 1825, 2220, 2225 NPO, X7R 10pF~10uF 25V~4000V General Purpose Caps High Temperature Caps(HT series) Microwave Caps_(RF series) 0201 to 1812 Sizes NP0, X5R, X7R, Y5V, X6S, X7S 0.1pF~220uF 6.3V~100V up to 150C 0402 to 1210 Sizes X8G, X8R 0.2pF~0.047F 10V~100V Ultra High Q / Ultra Low ESR 01005 to 1111 Sizes NPO 0.1pF~1000pF 6.3V~1500V Microwave High_Reliability_(RH series) Middle to High Voltage Caps_(200V-4kV) Soft Termination Capacitors_(SH series, Ag-poly) Soft Termination Bending Spec (JIS standard) 5mm High reliability Ultra High Q / Ultra Low ESR 0402 to 0805 Sizes NPO 0.1pF~10pF 200V~250V 0402 to 1812 Sizes NP0, X7R, Y5V 0.5pF~1uF 200V~4000V 0402 to 2225 NP0, X7R, X5R, Y5V 0.1pF~47uF 6.3V to 3000V

High precision thin film resistor (AR/PR series) It is produced by vacuum sputtering technology on high density ceramic substrate, with the widest resistance range, high precision 0.01% and low TCR 5ppm/℃. Complete sizes: 0201, 0402, 0603, 0805, 1206, 2010 and 2512. Resistance range: 1ohm-3Mohm, accuracy: 0.01%, 0.05%, 0.1%, 0.25%, 0.5%, 1%, temperature coefficient (TCR): 5, 10, 15, 25 and 50 ppm /℃. Mainly used in medical instruments, measuring equipment, automobile related control board, computer peripheral control board, power converter, LCD control board, mobile phone, and laptop, etc. Current sensing resistance (CS/TCS series) Use unique materials and process technology to provide high quality, high reliability and low TCR 100ppm/℃ low resistance resistance range of 1mohm-1000mohm, accuracy: 1 and 5%, power up to 3W. In addition, the unique low resistance resistance of the thin film process can provide TCR 50ppm/℃ and 0.5% accuracy. Complete sizes: 0201, 0402, 0603, 0805, 1206, 2010, 2512, 3720, 7520 and 1225. Mainly used in laptop, host board, screen, toy charging control board, mobile phone and all kinds of charger control board, power supply, power converter and so on. Alloy Ultra Low resistance (LR series) In order to meet the high power electrical characteristics, the use of high purity, high thermal conductivity and low TCR and high temperature resistance of the special alloy, in order to meet the needs of customers, high thermal conductivity material can greatly reduce the heat dissipation area on the circuit board, integrated molding without cutting structure, can reach almost no inductance value, resistance value range: 0.5mohm-22mohm. Accuracy 1% 2% 5%, TCR 50ppm/℃, size 1206, 2010 and 2512. Mainly used in laptop, host board, screen, toy charging control board, mobile phone and all kinds of charger control board, power supply, power converter and so on. Thick film wafer resistance/exclusion (CR/RA series) Dimensions complete 0201, 0402, 0603
